Automating EC2 Setup Using AWS Systems Manager (SSM Run Command)

Overview

Manually logging into EC2 instances to install agents and services is not scalable, secure, or production-ready. AWS provides a powerful alternative through AWS Systems Manager, which allows administrators to manage instances without SSH access.

In this blog, we will automate the installation of:

• CloudWatch Agent (with configuration)

• SSM Agent

• HTTP Server (Apache)

• Execute everything remotely using SSM Run Command

This approach follows real-world DevOps best practices and is widely used in production environments.

---

Prerequisites

Before starting, ensure the following:

1. An EC2 instance is running (Amazon Linux 2 or Ubuntu).

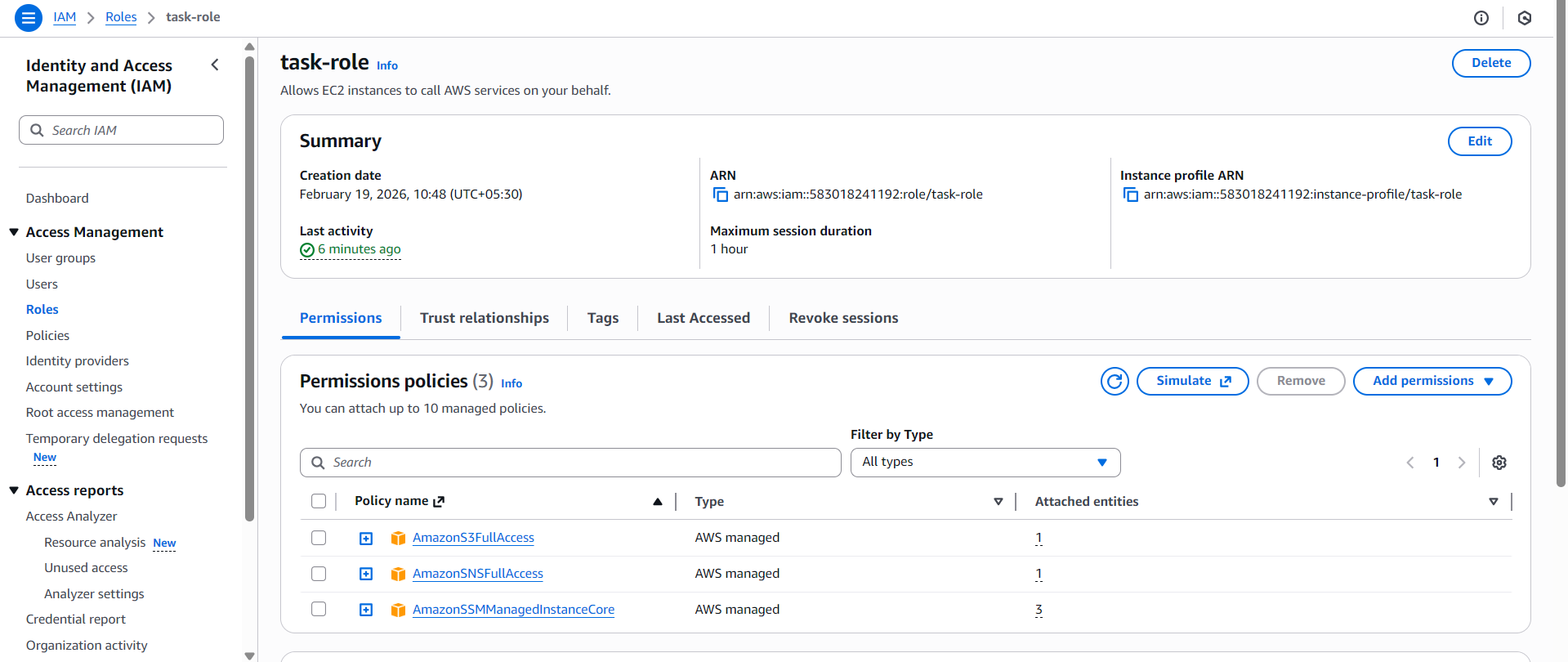

2. The EC2 instance has an IAM role attached with:

   • AmazonSSMManagedInstanceCore

3. The instance has outbound internet access (via NAT Gateway or Internet Gateway).

---

Why Use SSM Run Command Instead of SSH?

Traditional SSH-based access:

• Requires key management

• Needs open inbound ports

• Does not scale well

With SSM Run Command:

• No SSH keys required

• No inbound ports needed

• Commands are logged and auditable

• Works across multiple instances simultaneously

---

Step 1: Understanding What “Submit Script Using SSM Run Command” Means

Submitting a script using SSM Run Command means:

• You send a shell script to EC2 remotely

• AWS executes it using the SSM Agent

• No direct login to the instance is required

Internally:

1. SSM Run Command sends instructions

2. The SSM Agent on EC2 executes them

3. Output and status are returned to AWS

---

Step 2: Create the Installation Script

We create a single shell script that installs and configures all required components.

Script: setup_agents.sh

#!/bin/bash

echo "Updating system..."
sudo yum update -y

# Install CloudWatch Agent
echo "Installing CloudWatch Agent..."
sudo yum install amazon-cloudwatch-agent -y

# Create CloudWatch Agent configuration
sudo tee /opt/aws/amazon-cloudwatch-agent/etc/amazon-cloudwatch-agent.json <<EOF
{
  "agent": {
    "metrics_collection_interval": 60,
    "run_as_user": "root"
  },
  "metrics": {
    "append_dimensions": {
      "InstanceId": "\${aws:InstanceId}"
    },
    "metrics_collected": {
      "cpu": {
        "measurement": ["cpu_usage_idle", "cpu_usage_iowait"]
      },
      "mem": {
        "measurement": ["mem_used_percent"]
      }
    }
  }
}
EOF

# Start CloudWatch Agent
sudo /opt/aws/amazon-cloudwatch-agent/bin/amazon-cloudwatch-agent-ctl \
-a fetch-config -m ec2 \
-c file:/opt/aws/amazon-cloudwatch-agent/etc/amazon-cloudwatch-agent.json -s

# Install SSM Agent
echo "Installing SSM Agent..."
sudo yum install amazon-ssm-agent -y
sudo systemctl enable amazon-ssm-agent
sudo systemctl start amazon-ssm-agent

# Install HTTP Server
echo "Installing Apache HTTP Server..."
sudo yum install httpd -y
sudo systemctl enable httpd
sudo systemctl start httpd

echo "Installation completed successfully."

---

Step 3: Upload Script to Amazon S3 (Optional but Recommended)

Uploading the script to S3 makes it reusable across environments.

aws s3 cp setup_agents.sh s3://your-bucket-name/setup_agents.sh

---

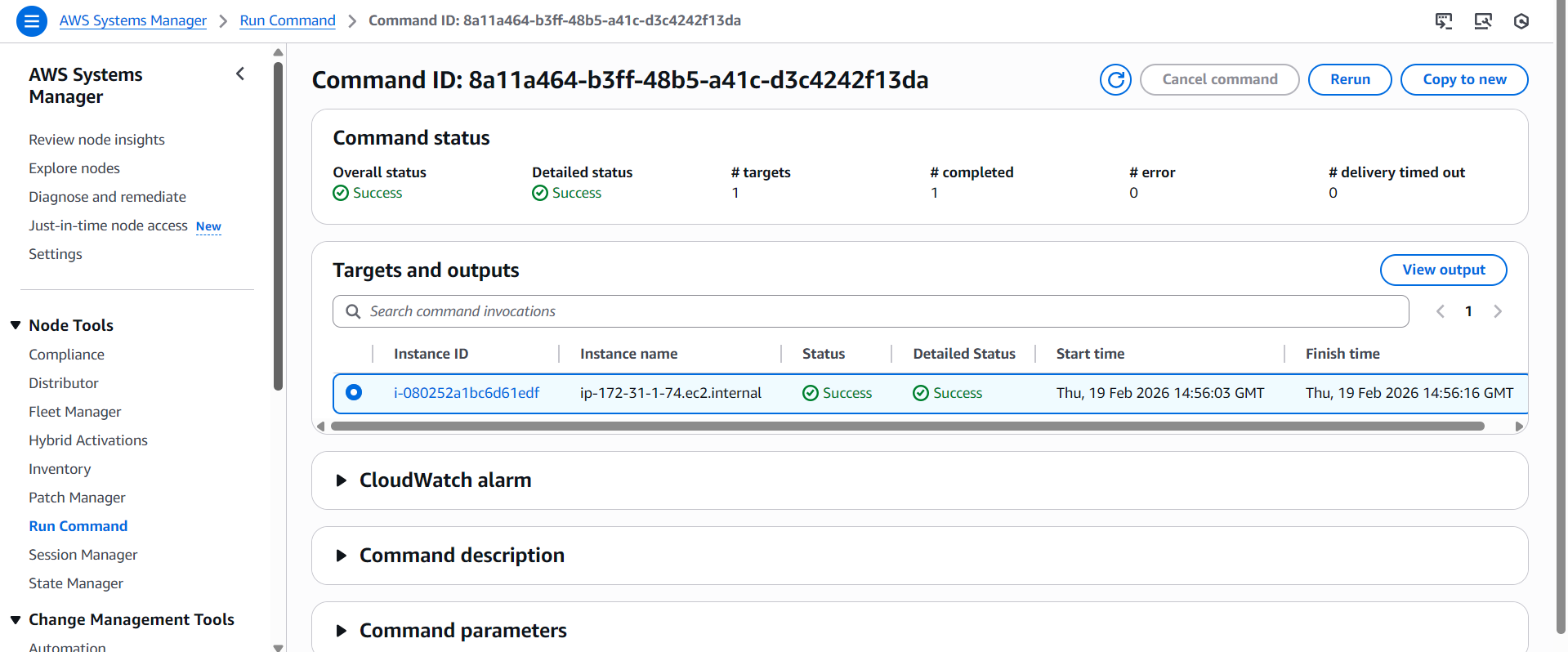

Step 4: Execute Script Using SSM Run Command

Using AWS Console

1. Open AWS Systems Manager

2. Navigate to Run Command

3. Click Run a command

4. Select document: AWS-RunShellScript

5. Choose your EC2 instance

6. In Commands, enter:

aws s3 cp s3://your-bucket-name/setup_agents.sh /tmp/setup_agents.sh
chmod +x /tmp/setup_agents.sh
/tmp/setup_agents.sh

1. Click Run

---

What Happens Behind the Scenes

• SSM securely connects to the EC2 instance

• Downloads the script

• Executes it with root privileges

• Sends logs and status back to AWS

No SSH. No inbound rules. Fully secure.

---

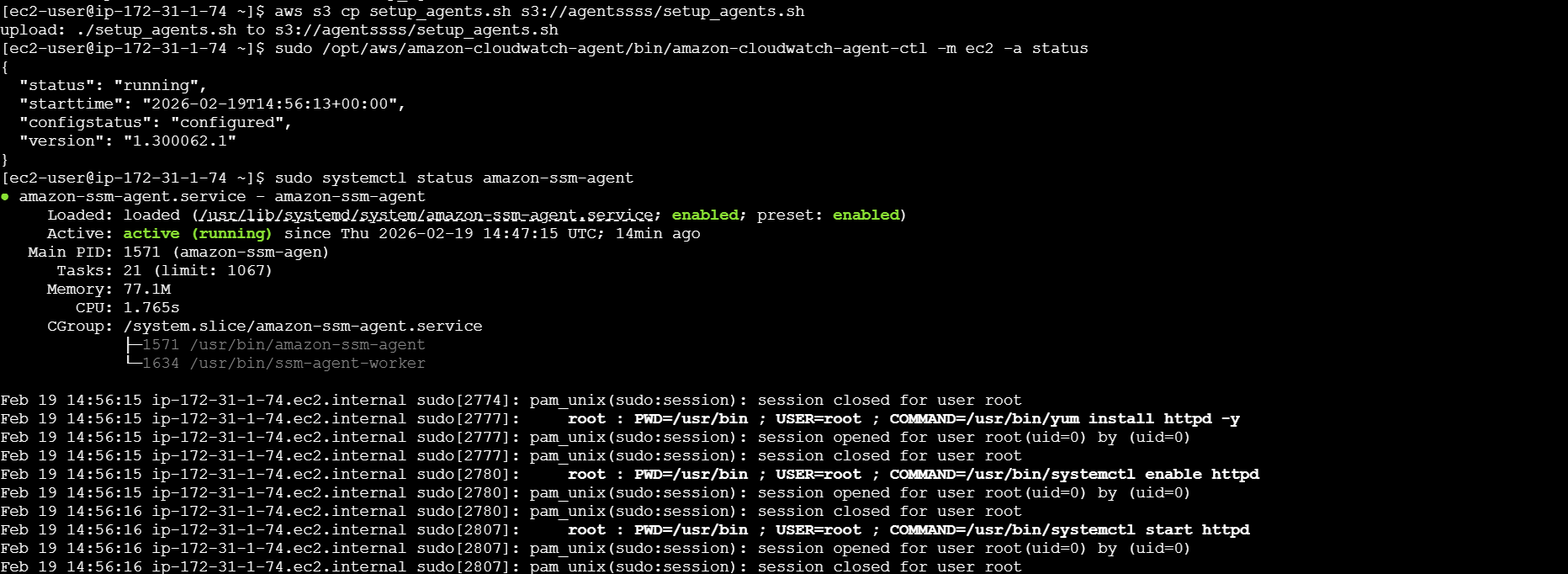

Step 5: Verification

Verify CloudWatch Agent

sudo /opt/aws/amazon-cloudwatch-agent/bin/amazon-cloudwatch-agent-ctl -a status -m ec2

---

Verify SSM Agent

sudo systemctl status amazon-ssm-agent

---

Verify HTTP Server

curl http://localhost

Or access the EC2 public IP in a browser.

---

Key Takeaways

• SSM Run Command enables secure, scalable, and auditable instance management

• CloudWatch Agent should always use dynamic metadata

• Automation scripts should be reusable and environment-agnostic

• This setup reflects real production DevOps workflows

---

Conclusion

By combining SSM Run Command, CloudWatch Agent, and automated scripts, we eliminate manual EC2 management and move toward a true infrastructure automation model.

This approach is widely used in production environments and is highly valued in DevOps and Cloud Engineering roles.
